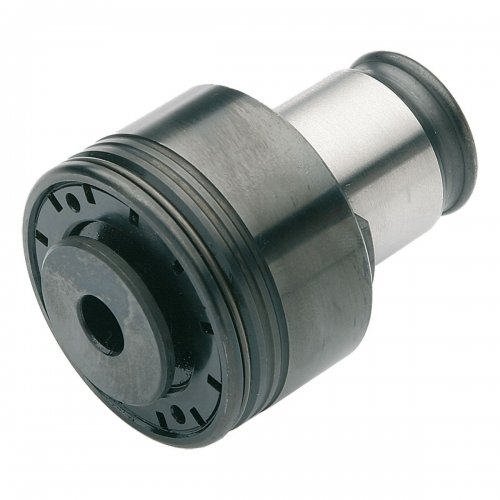

Tappot met ratel
Wilson & Wilson Tappotten voorzien van een slipkoppeling geschikt voor het tappen van blinde gaten |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||

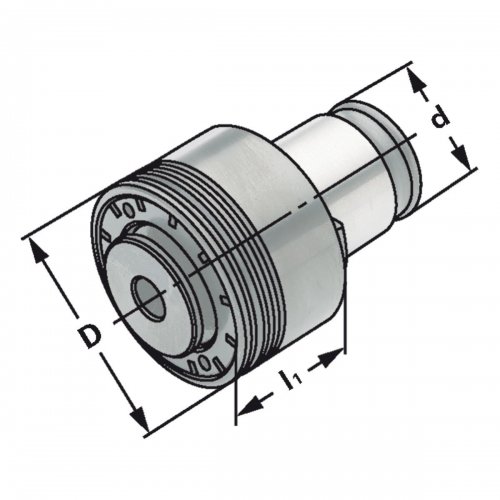

| Afmetingen | |||||||||||
| Artikelnummer | Grootte | D | d | l1 | M | DIN | d1 | Vierkant | Prijs | ||
KE16.11.335 |
1 | 32 | 19 | 25 | M3 | 371 | 3,5 | 2,7 | € 35.00 | ||
KE16.11.354 |
1 | 32 | 19 | 25 | M3,5 | 371 | 4,0 | 3,0 | € 35.00 | ||
KE16.11.445 |
1 | 32 | 19 | 25 | M4 | 371 | 4,5 | 3,4 | € 35.00 | ||
KE16.11.5649 |
1 | 32 | 19 | 25 | M5 | 371 | 6,0 | 4,9 | € 35.00 | ||
KE16.11.6649 |
1 | 32 | 19 | 25 | M6 | 371 | 6,0 | 4,9 | € 35.00 | ||
KE16.11.88 |
1 | 32 | 19 | 25 | M8 | 371 | 8,0 | 6,2 | € 35.00 | ||
KE16.11.107 |
1 | 32 | 19 | 25 | M10 | 376 | 7,0 | 5,5 | € 35.00 | ||
KE16.11.1010 |
1 | 32 | 19 | 25 | M10 | 371 | 10,0 | 8,0 | € 35.00 | ||
KE16.11.129 |
1 | 32 | 19 | 25 | M12 | 376 | 9,0 | 7,0 | € 35.00 | ||
KE16.11.14119 |
1 | 32 | 19 | 25 | M14 | 376 | 11,0 | 9,0 | € 35.00 | ||
| € | |||||||||||
KE16.12.5649 |
2 | 50 | 31 | 31 | M5 | 371 | 6,0 | 4,9 | € 50.00 | ||
KE16.12.6649 |
2 | 50 | 31 | 31 | M6 | 371 | 6,0 | 4,9 | € 50.00 | ||
KE16.12.88 |
2 | 50 | 31 | 31 | M8 | 371 | 7,0 | 5,5 | € 50.00 | ||
KE16.12.107 |
2 | 50 | 31 | 31 | M10 | 376 | 7,0 | 5,5 | € 50.00 | ||
KE16.12.1010 |
2 | 50 | 31 | 31 | M10 | 376 | 9,0 | 7,0 | € 50.00 | ||
KE16.12.129 |
2 | 50 | 31 | 31 | M12 | 376 | 9,0 | 7,0 | € 50.00 | ||
KE16.12.1411 |
2 | 50 | 31 | 31 | M14 | 376 | 9,0 | 7,0 | € 50.00 | ||
KE16.12.1612 |
2 | 50 | 31 | 31 | M16 | 376 | 11,0 | 9,0 | € 50.00 | ||
KE16.12.181411 |
2 | 50 | 31 | 31 | M18 | 376 | 14,0 | 11,0 | € 50.00 | ||
KE16.12.2016 |
2 | 50 | 31 | 31 | M20 | 376 | 16,0 | 12,0 | € 50.00 | ||
KE16.12.2218145 |
2 | 50 | 31 | 31 | M22 | 376 | 18,0 | 14,5 | € 50.00 | ||
| € | |||||||||||
KE16.13.14119 |
3 | 72 | 48 | 41 | M14 | 376 | 11,0 | 9,0 | € 104.00 | ||
KE16.13.16129 |
3 | 72 | 48 | 41 | M16 | 376 | 12,0 | 9,0 | € 104.00 | ||
KE16.13.181411 |
3 | 72 | 48 | 41 | M18 | 376 | 14,0 | 11,0 | € 104.00 | ||
KE16.13.201612 |
3 | 72 | 48 | 41 | M20 | 376 | 16,0 | 12,0 | € 104.00 | ||
KE16.13.2218145 |
3 | 72 | 48 | 41 | M22 | 376 | 18,0 | 14,5 | € 104.00 | ||
KE16.13.2418145 |
3 | 72 | 48 | 41 | M24 | 376 | 18,0 | 14,5 | € 104.00 | ||
KE16.13.272016 |
3 | 72 | 48 | 41 | M27 | 376 | 20,0 | 16,0 | € 104.00 | ||
KE16.13.302218 |
3 | 72 | 48 | 41 | M30 | 376 | 22,0 | 18,0 | € 104.00 | ||
KE16.13.332520 |
3 | 72 | 48 | 41 | M33 | 376 | 25,0 | 20,0 | € 104.00 | ||
KE16.13.362822 |
3 | 72 | 48 | 41 | M36 | 376 | 28,0 | 22,0 | € 104.00 | ||
| Materiaal | |||
|---|---|---|---|
