Boorkop SPS
LLambrich Snelspan precisie boorkop met vaste opname |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||

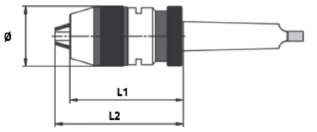

| Afmetingen | ||||||||||
| Artikelnummer | mm | K | Ø (mm) | L1 | L2 | L3 | Prijs | |||
SPS-08 MT-2 |
0,3 - 8,0 | Morsekonus 2 | 38 | 65 | 72 | € 207.00 | ||||
SPS-10 MT-2 |
0,5 - 10,0 | Morsekonus 2 | 43 | 73 | 82 | € 209.00 | ||||
SPS-13 MT-2 |
1,0 - 13,0 | Morsekonus 2 | 48 | 80 | 92 | € 218.00 | ||||
SPS-13 MT-3 |
1,0 - 13,0 | Morsekonus 3 | 48 | 80 | 92 | € 223.00 | ||||
SPS-13 MT-4 |
1,0 - 13,0 | Morsekonus 4 | 48 | 80 | 92 | € 243.00 | ||||
SPS-16 MT-3 |
3,0 - 16,0 | Morsekonus 3 | 54 | 85 | 96 | € 253.00 | ||||
SPS-16 MT-4 |
3,0 - 16,0 | Morsekonus 4 | 54 | 85 | 96 | € 266.00 | ||||
| € | ||||||||||
SPS-13 CIL-20 |
1,0 - 13,0 | Ø 20mm | 48 | 80 | 92 | 60 | € 222.00 | |||
SPS-13 CIL-25 |
1,0 - 13,0 | Ø 25mm | 48 | 80 | 92 | 61 | € 222.00 | |||
SPS-13 CIL-32 |
1,0 - 13,0 | Ø 32mm | 48 | 80 | 92 | 63 | € 229.00 | |||
SPS-16 CIL-20 |
3,0 - 16,0 | Ø 20mm | 54 | 88 | 98 | 60 | € 247.00 | |||
SPS-16 CIL-25 |
3,0 - 16,0 | Ø 25mm | 54 | 88 | 98 | 61 | € 252.00 | |||
SPS-16 CIL-32 |
3,0 - 16,0 | Ø 32mm | 54 | 88 | 98 | 63 | € 252.00 | |||
| Materiaal | |||
|---|---|---|---|
