Ruimen VHM
ZCC-CT VHM machineruimer, TiALN gecoat voor universeel gebruik Cilindrische schacht, DIN212B, passing H7, rechte groeven, koekanaal |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||

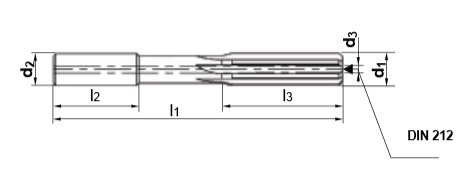

| Afmetingen | ||||||||||
| Artikelnummer | d2 | d3 | d1 | l1 | l3 | l2 | aantal tanden | Prijs | ||
3112H7-0400 KRG102 |
4.0 | 0.6 | 4.0 | 70 | 20 | 28 | 6 | € 29.15 | ||
3112H7-0500 KRG102 |
5.0 | 1.0 | 5.0 | 70 | 22 | 28 | 6 | € 33.55 | ||
3112H7-0503 KRG102 |
5.0 | 1.0 | 5.03 | 70 | 22 | 28 | 6 | € 33.60 | ||
3112H7-0600 KRG102 |
6.0 | 1.0 | 6.0 | 100 | 25 | 42 | 6 | € 36.96 | ||
3112H7-0603 KRG102 |
6.0 | 1.0 | 6.03 | 100 | 25 | 42 | 6 | € 43.30 | ||
3112H7-0700 KRG102 |
7.0 | 1.3 | 7.0 | 110 | 25 | 42 | 6 | € 56.89 | ||
3112H7-0800 KRG102 |
8.0 | 1.3 | 8.0 | 110 | 25 | 42 | 6 | € 56.89 | ||
3112H7-0900 KRG102 |
10.0 | 2.0 | 9.0 | 110 | 25 | 42 | 6 | € 68.75 | ||
3112H7-1000 KRG102 |
10.0 | 2.0 | 10.0 | 110 | 25 | 38 | 6 | € 68.75 | ||
3112H7-1100 KRG102 |
12.0 | 2.0 | 11.0 | 110 | 28 | 38 | 6 | € 89.65 | ||
3112H7-1200 KRG102 |
12.0 | 2.0 | 11.0 | 110 | 28 | 38 | 6 | € 89.65 | ||
3112H7-1300 KRG102 |
14.0 | 2.0 | 13.0 | 110 | 28 | 38 | 6 | € 112.20 | ||
3112H7-1400 KRG102 |
14.0 | 2.0 | 14.0 | 110 | 32 | 38 | 6 | € 112.20 | ||
3112H7-1500 KRG102 |
16.0 | 2.0 | 15.0 | 110 | 32 | 38 | 6 | € 150.92 | ||
3112H7-1600 KRG102 |
16.0 | 2.0 | 16.0 | 150 | 32 | 52 | 6 | € 178.20 | ||
3112H7-1800 KRG102 |
18.0 | 3.0 | 18.0 | 150 | 36 | 52 | 6 | € 267.85 | ||
3112H7-2000 KRG102 |
20.0 | 3.0 | 20.0 | 150 | 36 | 50 | 6 | € 272.14 | ||

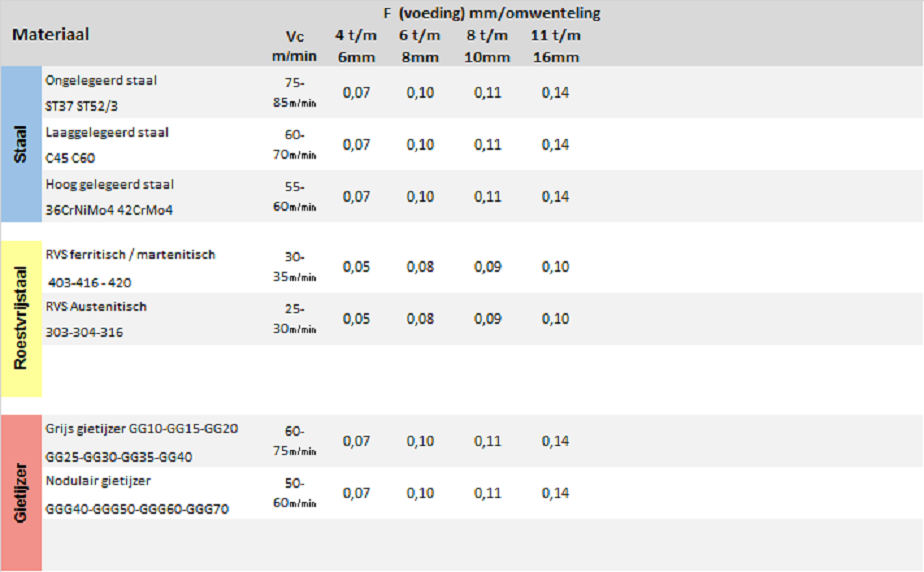

| Materiaal | |||
|---|---|---|---|
