VHM HPC 4-snijder
ZCC-CT VHM HPC Frees 4-snijder met ongelijke spiraalhoek 38-41° AlCrN gecoat gecoat met fase op de snijkant Cilindrische schacht met weldon opspanvlak, verjongd achter de snijkant |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||

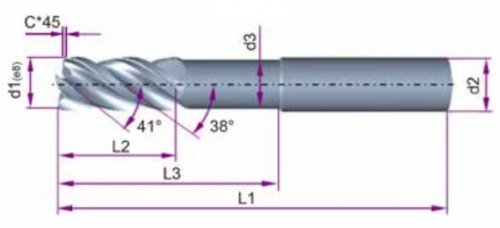

| Afmetingen | |||||||||
| Artikelnummer | L3 | d1 | d3 | L1 | L2 | d2 | Prijs | ||
5602R38414GM-0400 KMG405 |
19 | 4 | 3.7 | 57 | 11 | 6 | € 21.84 | ||
5602R38414GM-0500 KMG405 |
21 | 5 | 4.7 | 57 | 13 | 6 | € 21.84 | ||
5602R38414GM-0600 KMG405 |
21 | 6 | 5.7 | 57 | 13 | 6 | € 21.84 | ||
5602R38414GM-0800 KMG405 |
27 | 8 | 7.7 | 63 | 19 | 8 | € 30.64 | ||
5602R38414GM-1000 KMG405 |
32 | 10 | 9.5 | 72 | 22 | 10 | € 43.12 | ||
5602R38414GM-1200 KMG405 |
38 | 12 | 11.5 | 83 | 26 | 12 | € 63.38 | ||
5602R38414GM-1400 KMG405 |
38 | 14 | 13.5 | 83 | 26 | 14 | € 94.57 | ||
5602R38414GM-1600 KMG405 |
44 | 16 | 15.5 | 92 | 32 | 16 | € 102.82 | ||
5602R38414GM-1800 KMG405 |
44 | 18 | 17.5 | 92 | 32 | 18 | € 155.60 | ||
5602R38414GM-2000 KMG405 |
54 | 20 | 19.5 | 104 | 38 | 20 | € 177.68 | ||

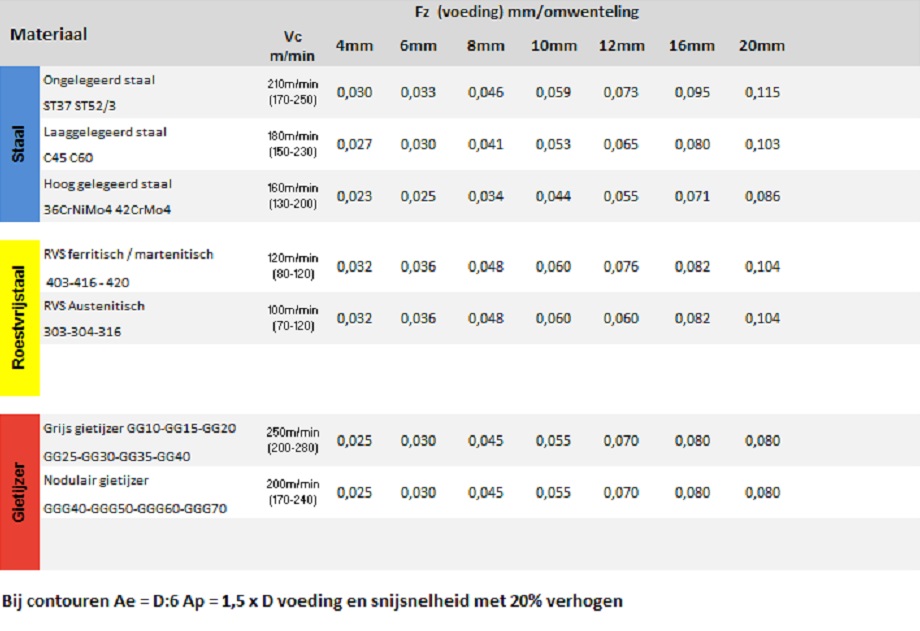

| Materiaal | |||
|---|---|---|---|
