HSS Brootsen



INTEGI HSS Brootsen
Vervaardigt uit HSS materiaal en gehard 62 HRc
volledig geslepen

Geschikt voor staal tot 800Nm2-NON-ferro-Kunststof

  Afmetingen

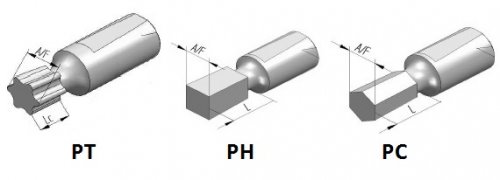

Artikelnummer Referentie A/F Tolerantie L Grootte Prijs
06050341
PT TORX 6 +0,1/+0,12 8,0 mm 3 150.33
06050342
PT TORX 8 +0,1/+0,12 8,0 mm 3 150.33
06050343
PT TORX 10 +0,1/+0,12 8,0 mm 3 150.33
06050344
PT TORX 15 +0,1/+0,12 8,0 mm 3 150.33
06050345
PT TORX 20 +0,1/+0,12 8,0 mm 3 150.33
06050346
PT TORX 25 +0,1/+0,12 12,0 mm 3 150.33
06050347
PT TORX 30 +0,1/+0,12 12,0 mm 3 150.33
06050348
PT TORX 40 +0,1/+0,12 12,0 mm 3 150.33
06050349
PT TORX 45 +0,1/+0,12 12,0 mm 3 150.33
06050441
PT TORX 10 +0,1/+0,12 8,0 mm 4 164.37
06050442
PT TORX 15 +0,1/+0,12 8,0 mm 4 164.37
06050443
PT TORX 20 +0,1/+0,12 8,0 mm 4 164.37
06050444
PT TORX 25 +0,1/+0,12 12,0 mm 4 164.37
06050445
PT TORX 30 +0,1/+0,12 12,0 mm 4 164.37
06050446
PT TORX 40 +0,1/+0,12 12,0 mm 4 164.37
06050449
PT TORX 45 +0,1/+0,12 12,0 mm 4 164.37
07020201
PH 1,2 mm +0,1/+0,12 2,0 mm 3 78.57
07020202
PH 1,5 mm +0,1/+0,12 2,5 mm 3 78.57
07020203
PH 2,0 mm +0,1/+0,12 3,0 mm 3 78.57
07020204
PH 2,5 mm +0,1/+0,12 4,5 mm 3 78.57
07020205
PH 3,0 mm +0,1/+0,12 6,0 mm 3 78.57
07020206
PH 4,0 mm +0,1/+0,12 8,5 mm 3 78.57
07020207
PH 5,0 mm +0,1/+0,12 9,0 mm 3 78.57
07020208
PH 6,0 mm +0,1/+0,12 10,0 mm 3 78.57
07020209
PH 7,0 mm +0,1/+0,12 11,0 mm 3 78.57
07020210
PH 8,0 mm +0,1/+0,12 12,5 mm 3 78.57
07020211
PH 9,0 mm +0,1/+0,12 13,5 mm 3 78.57
07020212
PH 10,0 mm +0,1/+0,12 15,0 mm 3 78.57
07040201
PH 2,5 mm +0,1/+0,12 4,0 mm 4 87.72
07040202
PH 3,0 mm +0,1/+0,12 4,5 mm 4 87.72
07040203
PH 4,0 mm +0,1/+0,12 6,0 mm 4 87.72
07040204
PH 5,0 mm +0,1/+0,12 8,0 mm 4 87.72
07040205
PH 6,0 mm +0,1/+0,12 9,5 mm 4 87.72
07040207
PH 10,0 mm +0,1/+0,12 15,5 mm 4 87.72
07040208
PH 12,0 mm +0,1/+0,12 17,0 mm 4 87.72
07040209
PH 14,0 mm +0,1/+0,12 18,5 mm 4 87.72
07040210
PH 16,0 mm +0,1/+0,12 19,5 mm 4 100.94
07020101
PC 1,2 mm +0,1/+0,12 2,0 mm 3 78.57
07020102
PC 1,5 mm +0,1/+0,12 2,5 mm 3 78.57
07020103
PC 2,0 mm +0,1/+0,12 3,0 mm 3 78.57
07020104
PC 2,5 mm +0,1/+0,12 4,0 mm 3 78.57
07020105
PC 3,0 mm +0,1/+0,12 4,5 mm 3 78.57
07020106
PC 4,0 mm +0,1/+0,12 6,0 mm 3 78.57
07020107
PC 5,0 mm +0,1/+0,12 8,0 mm 3 78.57
07020108
PC 6,0 mm +0,1/+0,12 9,0 mm 3 78.57
07020109
PC 7,0 mm +0,1/+0,12 10,0 mm 3 78.57
07020110
PC 8,0 mm +0,1/+0,12 12,5 mm 3 78.57
07020111
PC 9,0 mm +0,1/+0,12 13,5 mm 3 78.57
07020112
PC 10,0 mm +0,1/+0,12 15,0 mm 3 78.57
07020113
PC 11,0 mm +0,1/+0,12 15,5 mm 3 78.57
07020114
PC 12,0 mm +0,1/+0,12 16,5 mm 3 78.57
07020115
PC 14,0 mm +0,1/+0,12 15,5 mm 3 78.57
07040101
PC 2,5 mm +0,1/+0,12 4,0 mm 4 87.72
07040102
PC 3,0 mm +0,1/+0,12 4,5 mm 4 87.72
07040103
PC 4,0 mm +0,1/+0,12 6,0 mm 4 87.72
07040104
PC 5,0 mm +0,1/+0,12 8,0 mm 4 87.72
07040105
PC 6,0 mm +0,1/+0,12 9,5 mm 4 87.72
07040106
PC 8,0 mm +0,1/+0,12 13,0 mm 4 87.72
07040107
PC 10,0 mm +0,1/+0,12 15,5 mm 4 87.72
07040108
PC 12,0 mm +0,1/+0,12 17,0 mm 4 87.72
07040109
PC 14,0 mm +0,1/+0,12 18,5 mm 4 87.72
07040110
PC 16,0 mm +0,1/+0,12 19,5 mm 4 100.94
07040111
PC 17,0 mm +0,1/+0,12 22,0 mm 4 100.94
07040112
PC 18,0 mm +0,1/+0,12 22,0 mm 4 100.94
07040113
PC 19,0 mm +0,1/+0,12 20,0 mm 4 100.94
07040114
PC 22,0 mm +0,1/+0,12 20,0 mm 4 100.94
07040115
PC 24,0 mm +0,1/+0,12 20,5 mm 4 100.94

Materiaal
