T4 Kopieerboorbeitel

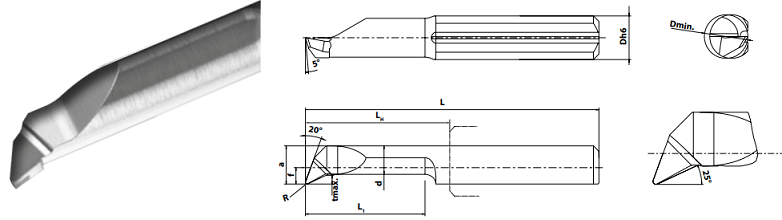

VHM Kopieerboorbeitel Geschikt voor houder DH
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Afmetingen | |||||||||||
| Artikelnummer | Dh6 | D min | L1 | LH | L | R | tmax | a | f | d | Prijs |
T4.4.27.11.010R |
4 | 2.7 | 11 | 13 | 27 | 0.1 | 0.3 | 2.45 | 0.45 | 2.05 | € 28.33 |
T4.4.27.16.010R |
4 | 2.7 | 16 | 18 | 32 | 0.1 | 0.3 | 2.45 | 0.45 | 2.05 | € 29.53 |
T4.4.40.11.015R |
4 | 4 | 11 | 13 | 27 | 0.15 | 0.8 | 3.5 | 1.5 | 2.6 | € 27.95 |
T4.4.40.16.015R |
4 | 4 | 16 | 18 | 32 | 0.15 | 0.8 | 3.5 | 1.5 | 2.6 | € 29.22 |
T4.5.50.11.020R |
5 | 5 | 11 | 13 | 27 | 0.2 | 1 | 4.4 | 1.9 | 3.3 | € 26.27 |
T4.5.50.26.020R |
5 | 5 | 26 | 28 | 42 | 0.2 | 1 | 4.4 | 1.9 | 3.3 | € 33.40 |
T4.6.60.21.020R |
6 | 6 | 21 | 23 | 37 | 0.2 | 1.8 | 5.3 | 2.3 | 3.4 | € 30.47 |
T4.6.60.31.020R |
6 | 6 | 31 | 33 | 47 | 0.2 | 1.8 | 5.3 | 2.3 | 3.4 | € 37.18 |
| Materiaal | |||
|---|---|---|---|
