P2 Draadsnijbeitels Volprofiel 60gr.

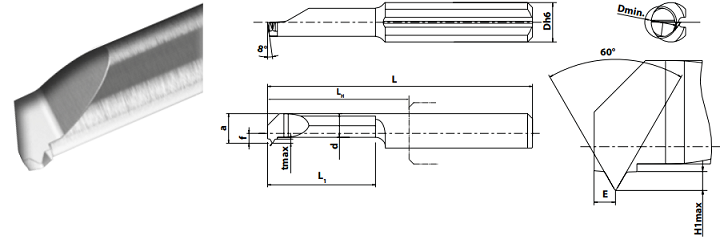

VHM draadsnijbeitel ISO 60 graden volprofiel Geschikt voor houder DH
|
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Afmetingen | |||||||||||||
| Artikelnummer | R | P | H1max | L | E | LH | d | L1 | f | D min | a | Dh6 | Prijs |
P2.4.34.11.050R |
0.29 | 0.5 | 0.27 | 27 | 0.35 | 13 | 2.65 | 11 | 1.3 | MF4X0,5 | 3.3 | 4 | € 27.74 |
P2.5.50.16.050R |
0.29 | 0.5 | 0.27 | 32 | 0.35 | 18 | 3.3 | 16 | 1.9 | MF6X0.5 | 4.4 | 5 | € 28.05 |
P2.4.32.11.070R |
0.41 | 0.7 | 0.38 | 27 | 0.5 | 13 | 2.4 | 11 | 1 | MF4X0.7 | 3 | 4 | € 27.74 |
P2.5.54.16.075R |
0.45 | 0.75 | 0.41 | 32 | 0.55 | 18 | 3.8 | 16 | 2.2 | MF6X0.75 | 4.7 | 5 | € 25.43 |
P2.4.40.11.080R |
0.47 | 0.8 | 0.43 | 27 | 0.55 | 13 | 2.8 | 11 | 1.9 | M5X0.8 | 3.9 | 4 | € 27.74 |
P2.5.48.16.100R |
0.59 | 1 | 0.54 | 32 | 0.7 | 18 | 3.4 | 16 | 2 | M6X1 / MF8X1 | 4.5 | 5 | € 25.43 |
P2.6.58.21.100R |
0.59 | 1 | 0.54 | 37 | 0.7 | 23 | 4.4 | 21 | 2.5 | M7X1 / MF8X1 | 5.5 | 6 | € 27.95 |
P2.6.65.21.125R |
0.73 | 1.25 | 0.68 | 37 | 0.9 | 23 | 4.8 | 21 | 2.9 | M8X1.25 / MF10X1.25 | 5.9 | 6 | € 25.43 |
| Materiaal | |||
|---|---|---|---|
