Groefbeitel Radius

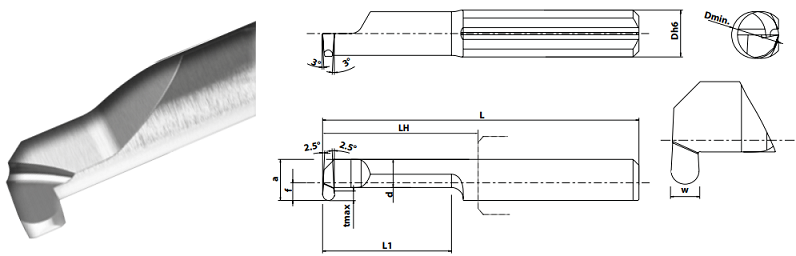

VHM groefsteekbeitel met radius Geschikt voor houder DH
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Afmetingen | ||||||||||||
| Artikelnummer | D min | L1 | LH | L | R | w+0,05 | tmax | a | f | d | Dh6 | Prijs |
G2.4.40.16.050.10R |
4 | 16 | 18 | 32 | 0,5 | 1 | 0.8 | 3.5 | 1.5 | 2.5 | 4 | € 30.91 |
G2.5.50.21.050.10R |
5 | 21 | 23 | 37 | 0.5 | 1 | 1 | 4.4 | 1.9 | 3.2 | 5 | € 31.01 |
G2.6.60.26.050.10R |
6 | 26 | 28 | 42 | 0.5 | 1 | 1.8 | 5.3 | 2.3 | 3.3 | 6 | € 35.09 |
G2.6.60.26.100.20R |
6 | 26 | 28 | 42 | 1 | 2 | 1.8 | 5.3 | 2.3 | 3.3 | 6 | € 35.09 |
G2.7.70.31.075.15R |
7 | 31 | 33 | 47 | 0.75 | 1.5 | 2.5 | 6.3 | 2.8 | 3.6 | 7 | € 37.19 |
G2.7.70.31.100.20R |
7 | 31 | 33 | 47 | 1 | 2 | 2.5 | 6.3 | 2.8 | 3.6 | 7 | € 37.19 |
| Materiaal | |||
|---|---|---|---|
